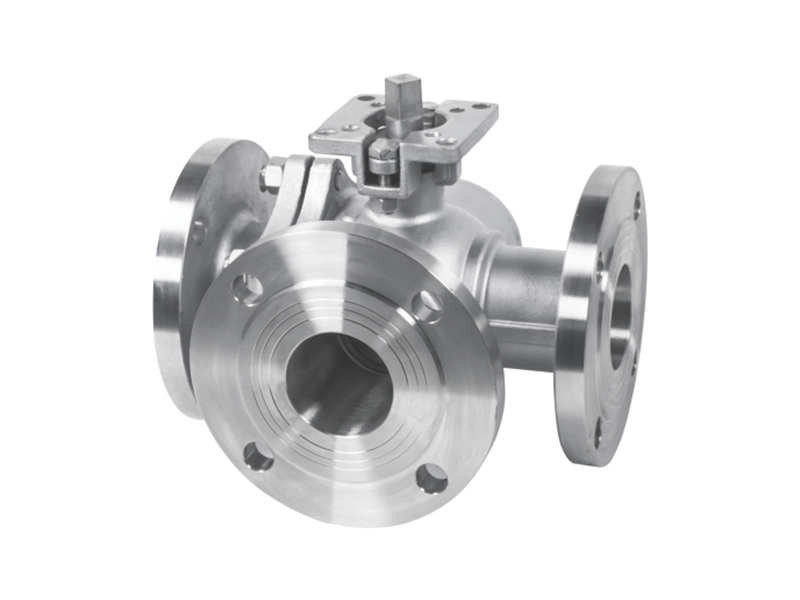

高平台三通法兰球阀性能规范
| 设计标准 | DIN 3357/1,2, EN 12516-1 |
| 法兰端 | DINEN1092-1 PN10-PN40 |
| 壁厚 | ASMEB16.34 |
| 检验与测试 | DIN3230/3 EN 12266 |
高平台三通法兰球阀材料列表
| 部件名称 | 材质 |
| 阀体 | 不锈钢CF8M CF8 |
| 阀盖 | 不绣钢CF8M CF8 |
| 间板 | 不锈钢CF8M CF8 |
| 阀杆 | 不锈钢SS316 304 |
| 线条 | 聚四氟乙烯PTFE |
| 止推垫片 | 聚四氟乙烯PTFE |
| 填料 | 不锈钢304 |
| 填料压套 | 不锈钢SS316 304 |
| 填料压盖螺母 | 不锈钢SS316 304 |
| 手轮 | - |
| 金属垫片 | 不锈钢SS304 |
| 弹垫 | 不锈钢SS304 |
| 螺帽 | 不锈铜SS304 |

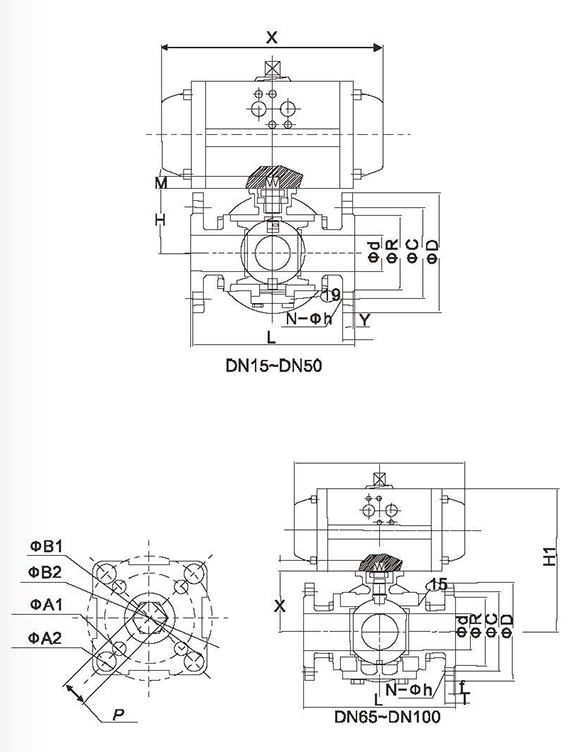

高平台三通法兰球阀外形尺寸
| DN | Size | PN | Φd | L | ΦR | ΦD | ΦC | f | T | H | H1 | N | oh | P | M | ΦA1 | ΦA2 | ΦB1 | ΦB2 | X | Y | ISO 5211 E-电动器 | |||
| 15 | 1/2" | 10-40 | 15 | 150 | 45 | 95 | 65 | 2 | 16 | 53 | 150.0 | 4 | 14 | 9 | 9 | 6 | 6 | 36 | 42 | 144.0 | 72 | F03-F04 | 50 | 006 | 80PSI |
| 20 | 3/4" | 10-40 | 20 | 165 | 58 | 105 | 75 | 2 | 18 | 57 | 155.5 | 4 | 14 | 9 | 9 | 6 | 7 | 36 | 50 | 144.0 | 72 | F03-F05 | 50 | 006 | 80PSI |
| 25 | 1" | 10-40 | 25 | 181 | 68 | 115 | 85 | 2 | 18 | 68 | 198.0 | 4 | 14 | 11 | 11 | 6 | 7 | 42 | 50 | 164.0 | 84 | F04-F05 | 63 | 80PSI | |
| 32 | 1-1/4" | 10-40 | 32 | 190 | 78 | 140 | 100 | 2 | 18 | 72 | 205.5 | 4 | 18 | 11 | 11 | 6 | 9 | 42 | 70 | 164 | 84 | F04-F07 | 63 | 008 | 80PSI |
| 40 | 1-1/2" | 10-40 | 38 | 212 | 88 | 150 | 110 | 3 | 18 | 85 | 228.5 | 4 | 18 | 14 | 14 | 7 | 9 | 50 | 70 | 228.5 | 108 | F05-F07 | 88 | 008 | 80PSI |
| 50 | 2" | 10-40 | 49 | 230 | 102 | 165 | 125 | 3 | 20 | 92 | 234.0 | 4 | 18 | 14 | 14 | 7 | 9 | 50 | 70 | 234.0 | 108 | F05-F07 | 88 | 015 | 80PSI |
| 65 | 2-1/2" | 10/16 | 63 | 290 | 122 | 185 | 145 | 3 | 18 | 107 | 261.0 | 4 | 18 | 17 | 17 | 9 | 11 | 70 | 102 | 261.0 | 123 | F07-F10 | 100 | 020 | 80PSI |
| 25/40 | 22 | 8 | |||||||||||||||||||||||
| 80 | 3" | 25/40 | 75 | 340 | 138 | 200 | 160 | 3 | 24 | 119 | 273.0 | 8 | 18 | 17 | 17 | 9 | 11 | 70 | 102 | 314.0 | 151 | F07-F10 | 125 | 020 | 80PSI |
| 10/16 | 310 | 20 | |||||||||||||||||||||||
| 100 | 4" | 25/40 | 99 | 386 | 162 | 235 | 290 | 3 | 24 | 150 | 345.0 | 8 | 22 | 22 | 22 | N/A | 11 | N/A | 102 | 345.0 | 151 | F10 | 125 | 030 | 80PSI |
| 10/16 | 353 | 158 | 220 | 180 | 3 | 20 | 18 | ||||||||||||||||||
